Download Komatsu PC1250-7, PC1250LC-7, PC1250SP-7 Hydraulic Excavator Field Assembly Instruction GEN00015-03

Execute safe and efficient on-site erection with the official Komatsu PC1250-7, PC1250LC-7, and PC1250SP-7 Hydraulic Excavator Field Assembly Instruction (Publication GEN00015-03). This comprehensive technical guide details step-by-step installation sequences for the track frames, center car, superstructure modules, counterweight, boom, arm, bucket, and hydraulic systems. Designed for field service technicians, rigging crews, and heavy equipment mechanics, manual GEN00015-03 includes vital lifting diagrams, torque specifications, hydraulic line routing, and pre-commissioning safety inspection checklists to ensure precise large excavator deployment.

PUBLICATION NO : GEN00015-03
SERIAL NUMBERS : PC1250-20001 AND UP, PC1250LC-20001 AND UP, PC1250SP-20001 AND UP
FILE SIZE : 11.82 MB
TOTAL PAGE : 192
LANGUAGE : ENGLISH

MODEL COVERED:-
PC1250-7, PC1250LC-7, PC1250SP-7 Hydraulic Excavator

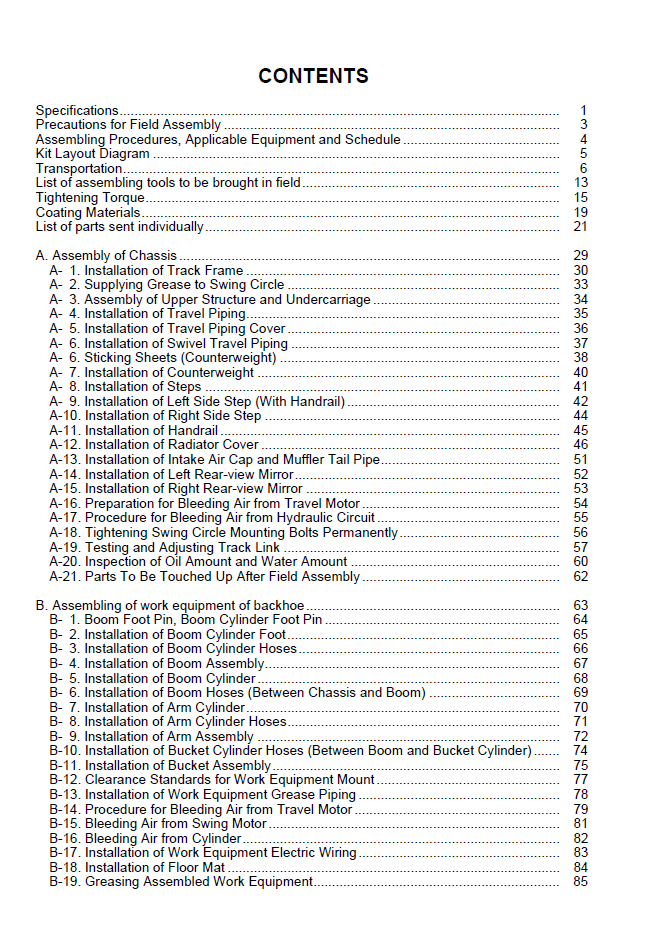

CONTENT INCLUDED:-
PRECAUTIONS FOR FIELD ASSEMBLY
ASSEMBLING PROCEDURES, APPLICABLE EQUIPMENT AND SCHEDULE
KIT LAYOUT DIAGRAM
TRANSPORTATION
LIST OF ASSEMBLING TOOLS TO BE BROUGHT IN FIELD
TIGHTENING TORQUE
COATING MATERIALS
LIST OF PARTS SENT INDIVIDUALLY

INSTANT DOWNLOAD ACCESS
