Download Instant Access For John Deere LX172, LX173, LX176, LX178, LX186 And LX188 Lawn Tractor Technical Manual TM1492

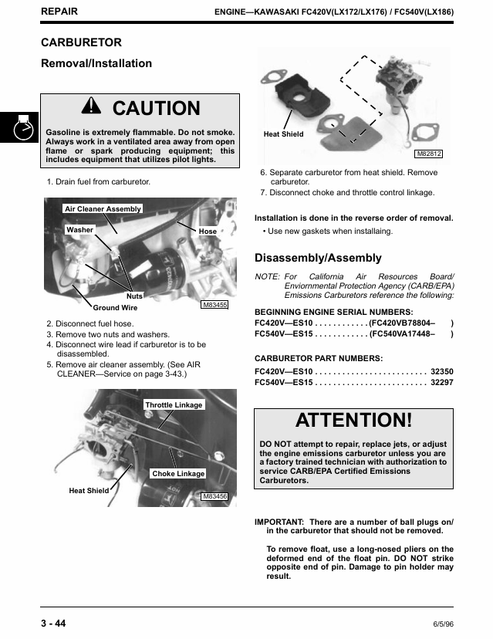

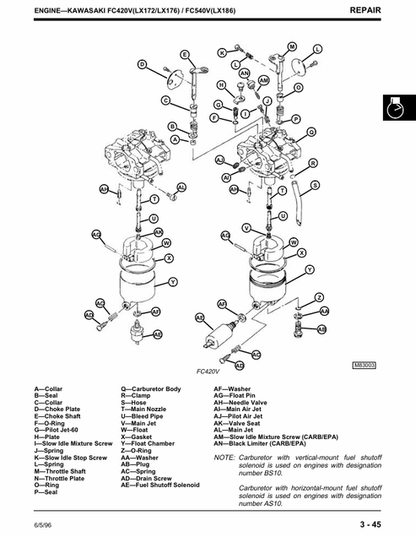

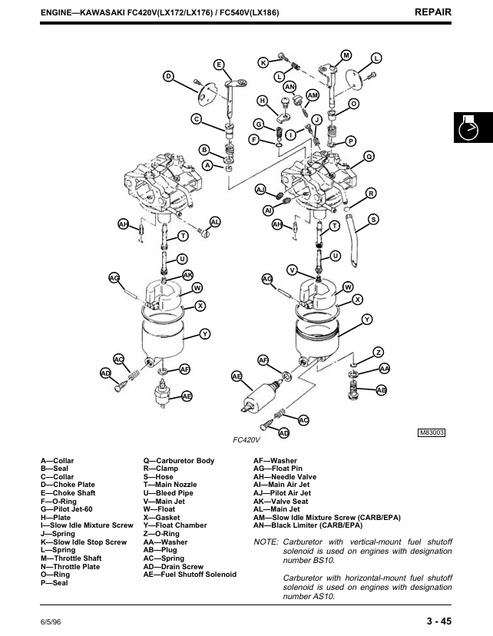

John Deere LX172, LX173, LX176, LX178, LX186 and LX188 Lawn Tractor Technical Manual TM1492 is a detailed reference guide for servicing, maintaining, troubleshooting, and repairing compatible John Deere lawn tractors. This manual provides technical information on tractor systems, components, specifications, adjustments, testing, troubleshooting, maintenance procedures, and repair instructions. Ideal for technicians, mechanics, owners, and service professionals, the TM1492 manual supports accurate diagnosis and efficient equipment maintenance. Get the John Deere LX Series Technical Manual in PDF format for convenient digital workshop reference.

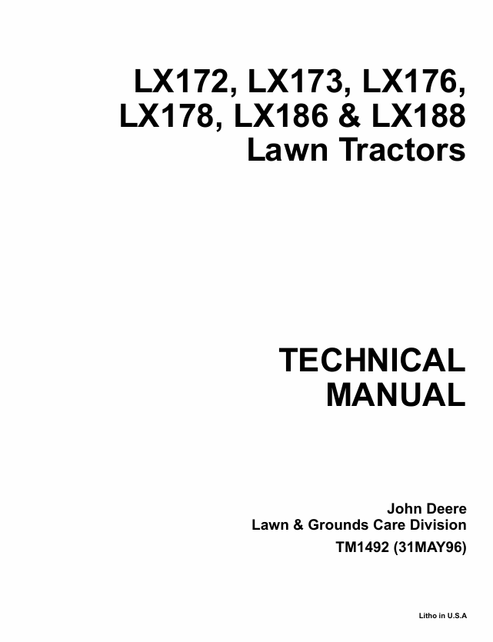

PUBLICATION NO : TM1492
DATE : 31 MAY 96
FILE SIZE : 40.1 MB
TOTAL PAGE : 660
LANGUAGE : ENGLISH

MODEL COVERED :

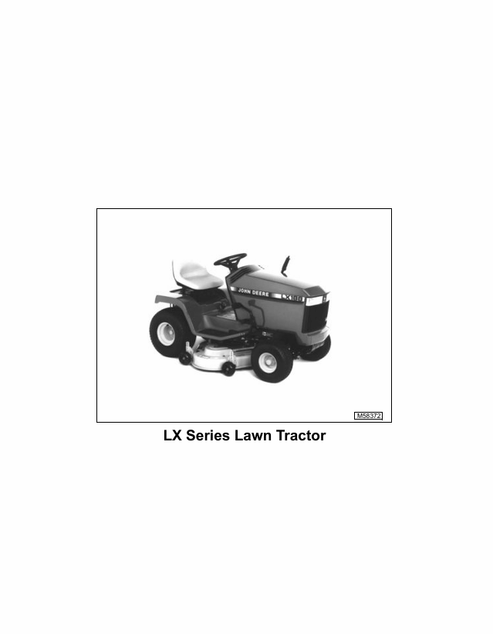

LX172, LX173, LX176, LX178, LX186 AND LX188 LAWN TRACTOR

CONTENT INCLUDED:
INTRODUCTION
SECTION 1 - SAFETY
SECTION 2 - SPECIFICATIONS AND GENERAL INFORMATION
GENERAL VEHICLE SPECIFICATIONS
METRIC FASTENER TORQUE VALUES
INCH FASTENER TORQUE VALUES
FUEL INFORMATION
OIL AND LUBRICANT INFORMATION
COOLANT INFORMATION
SERIAL AND IDENTIFICATION NUMBER LOCATIONS
SECTION 3 - ENGINE KAWASAKI
KAWASAKI FC420V AND FC540V
KAWASAKI FD440V AND FD501V
SECTION 4 - ENGINE - KOHLER
SPECIFICATIONS
SPECIAL OR ESSENTIAL TOOLS
OTHER MATERIALS
SERVICE PARTS KITS
TROUBLESHOOTING
TESTS AND ADJUSTMENTS
REPAIR
SECTION 5 - ELECTRICAL
SPECIFICATIONS
SPECIAL OR ESSENTIAL TOOLS
OTHER MATERIALS
THEORY AND DIAGNOSTIC INFORMATION
ELECTRICAL COMPONENTS
ELECTRICAL SCHEMATICS
WIRING HARNESS - LX172/LX176/LX186
ELECTRICAL CONNECTORS
WIRING HARNESS - LX178/LX188
ELECTRICAL CONNECTORS
WIRING HARNESS - LX173
ELECTRICAL CONNECTORS
TROUBLESHOOTING
CIRCUIT OPERATION AND DIAGNOSIS - LX172/LX176/LX186
CIRCUIT OPERATION AND DIAGNOSIS - LX178/LX188
CIRCUIT OPERATION AND DIAGNOSIS - LX173
TESTS AND ADJUSTMENTS
REPAIR
SECTION 6 - POWER TRAIN - GEAR
SPECIFICATIONS
OTHER MATERIALS
SERVICE PARTS KITS
COMPONENT LOCATION AND OPERATION
TROUBLESHOOTING AND DIAGNOSIS
ADJUSTMENTS
REPAIR
SECTION 7 - POWER TRAIN - HYDROSTATIC
OTHER MATERIALS
SERVICE PARTS KITS
TRANSAXLE IDENTIFICATION
JIC HYDRAULIC CIRCUIT SYMBOLS
HYDROSTATIC SCHEMATIC
COMPONENT LOCATION AND OPERATION
TROUBLESHOOTING AND DIAGNOSIS
ADJUSTMENTS
REPAIR
SECTION 8 - STEERING
SPECIFICATIONS
COMPONENT LOCATION AND OPERATION
TROUBLESHOOTING AND DIAGNOSIS
ADJUSTMENTS
REPAIR
SECTION 9 - BRAKES
SPECIFICATIONS
SERVICE PARTS KITS
OTHER MATERIALS
COMPONENT LOCATION AND OPERATION - LX172/LX173
COMPONENT LOCATION AND OPERATION - LX176/LX178/LX186/LX188
TROUBLESHOOTING AND DIAGNOSIS - LX172/LX173
TROUBLESHOOTING AND DIAGNOSIS - LX176/LX178/LX186/LX188
ADJUSTMENTS
REPAIR - LX172/LX173
REPAIR - LX176/LX178/LX186/LX188
SECTION 10 - ATTACHMENTS
SPECIFICATIONS
SPECIAL OR ESSENTIAL TOOLS
SERVICE PARTS KITS
COMPONENT LOCATION
TROUBLESHOOTING AND DIAGNOSIS
ADJUSTMENTS
REPAIR - 38 INCH MOWER DECK
REPAIR - 44 INCH REAR DISCHARGE MOWER DECK
REPAIR - 48 INCH MOWER DECK
SECTION 11 - MISCELLANEOUS
SPECIFICATIONS
SERVICE PARTS KITS
COMPONENT LOCATION AND OPERATION
REPAIR
INDEX

INSTANT DOWNLOAD ACCESS
