Download Instant Access For Caterpillar Cat 432D Backhoe Loader Electrical and Hydraulic Schematic Manual | Serial Number - BLD

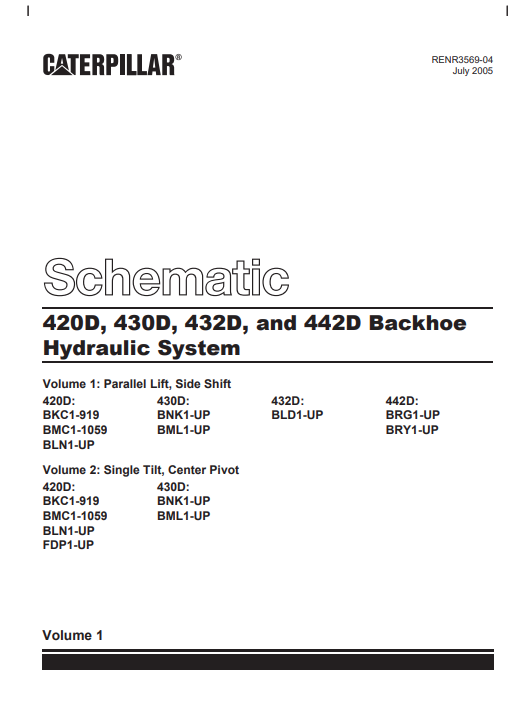

Caterpillar Cat 432D Backhoe Loader Electrical and Hydraulic Schematic Manual PDF for S/N BLD provides detailed factory wiring diagrams and hydraulic circuit schematics for the Cat 432D Backhoe Loader. This professional technical manual includes electrical system layouts, wiring harness routing, connector details, component locations, hydraulic flow diagrams, circuit identification, troubleshooting procedures, sensor information, and diagnostic support. Designed for technicians, mechanics, and equipment owners, it helps accurately diagnose electrical and hydraulic faults, reduce repair time, improve maintenance efficiency, and ensure reliable performance in construction, excavation, utility work, road maintenance, and material handling applications.

SERIAL NUMBER - BLD
FILE FORMAT - PDF
FILE SIZE - 1.01 MB
TOTAL PAGES - 7 Pages

MODEL COVERED:-
432D BACKHOE LOADER

CONTENT INCLUDED:-
FUEL
SWITCH
GROUND
RED SWITCH
SENDER
RELAY
SOLENOID
MAGNETIC LATCH SOLENOID

INSTANT DOWNLOAD ACCESS
