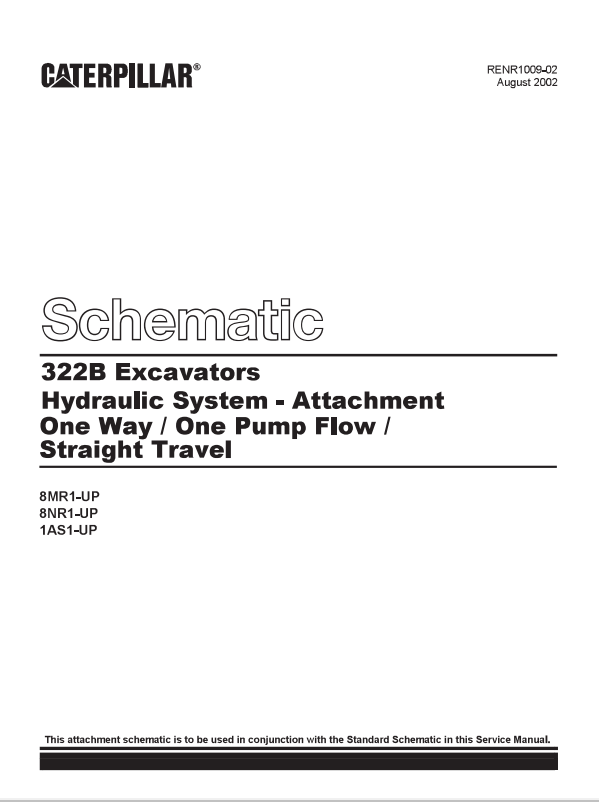

Caterpillar Cat 322B L Excavator Electrical and Hydraulic Schematic Manual PDF for S/N 1AS provides complete factory-approved wiring diagrams and hydraulic circuit schematics for accurate diagnostics, troubleshooting, and repair. This comprehensive manual includes electrical system layouts, wiring harness routing, connector pinouts, component locations, hydraulic flow diagrams, control valve schematics, sensors, actuators, and system operation references. Designed for technicians and service professionals, it helps reduce downtime, improve repair efficiency, and maintain reliable performance in construction, excavation, mining, quarry, and earthmoving applications.

SERIAL NUMBER - 1AS
FILE FORMAT - PDF
FILE SIZE - 5.63 MB
TOTAL PAGES - 53 Pages

MODEL COVERED:-
322B L Excavator

CONTENT INCLUDED:-
PILOT PUMP DELIVERY PRESSURE
RIGHT PUMP DELIVERY PRESSURE
LEFT PUMP DELIVERY PRESSURE
HYDRAULIC OIL SAMPLING PORT
CASE DRAIN PRESSURE
POWER SHIFT PRESSURE
BOOM UP PRESSURE
